ZIMMERER is tailored for craftsmen (they are called "Zimmermann" or "Zimmerer" in German) building timber frame houses and roofs. The first version was sold in 1988: MicroAPL-based running on Atari Computers (at 8 Mhz!). A Windows Version (DyalogAPL) was introduced in 1993.

ZIMMERER attempts to satisfy the software needs of a typical small business, all integrated in one piece of software.

Tender¶

• rapid entry of "in-about" construction
• lists of all items required for bidding
• formal printouts

Construction¶

• Starting with macros

• "visual" elaboration of details in CAD-style:

  Each individual beam can be modified

  Groups of beams can be modified in a uniform way

  Openings (e.g. for chimneys or windows) can be set in one pass

  Connections between different types of beams and/or different parts of the roof (Lap Joints, Tenon, Mortise, Drillings) can be set

  Colliding beams can be fitted

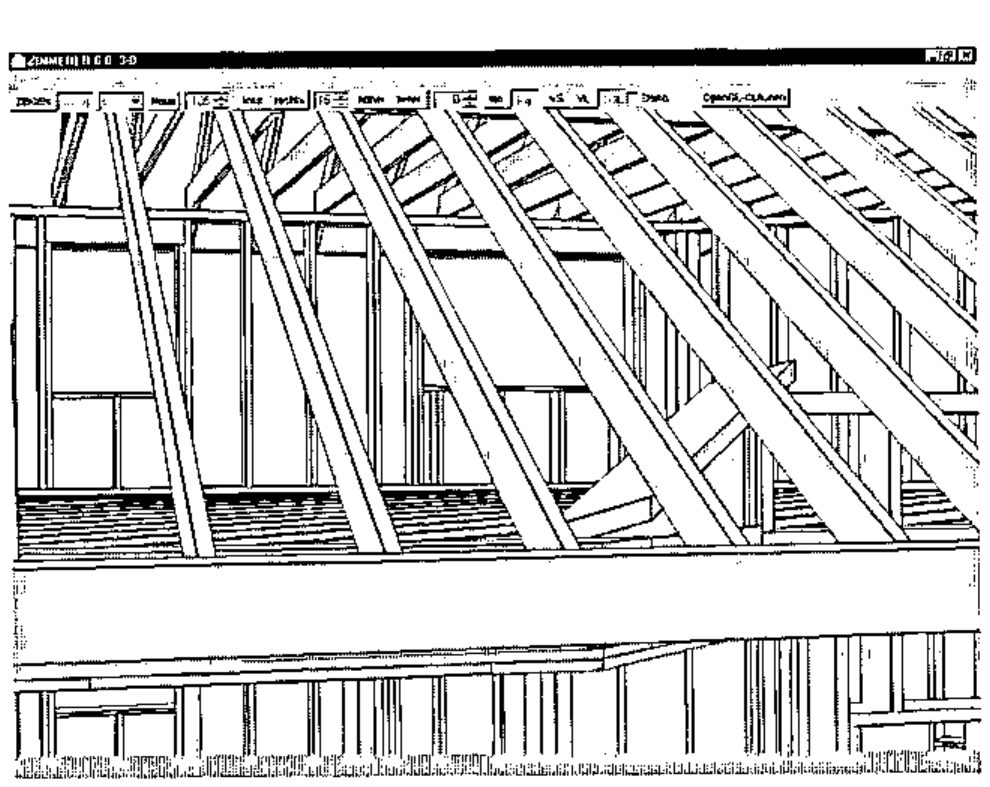

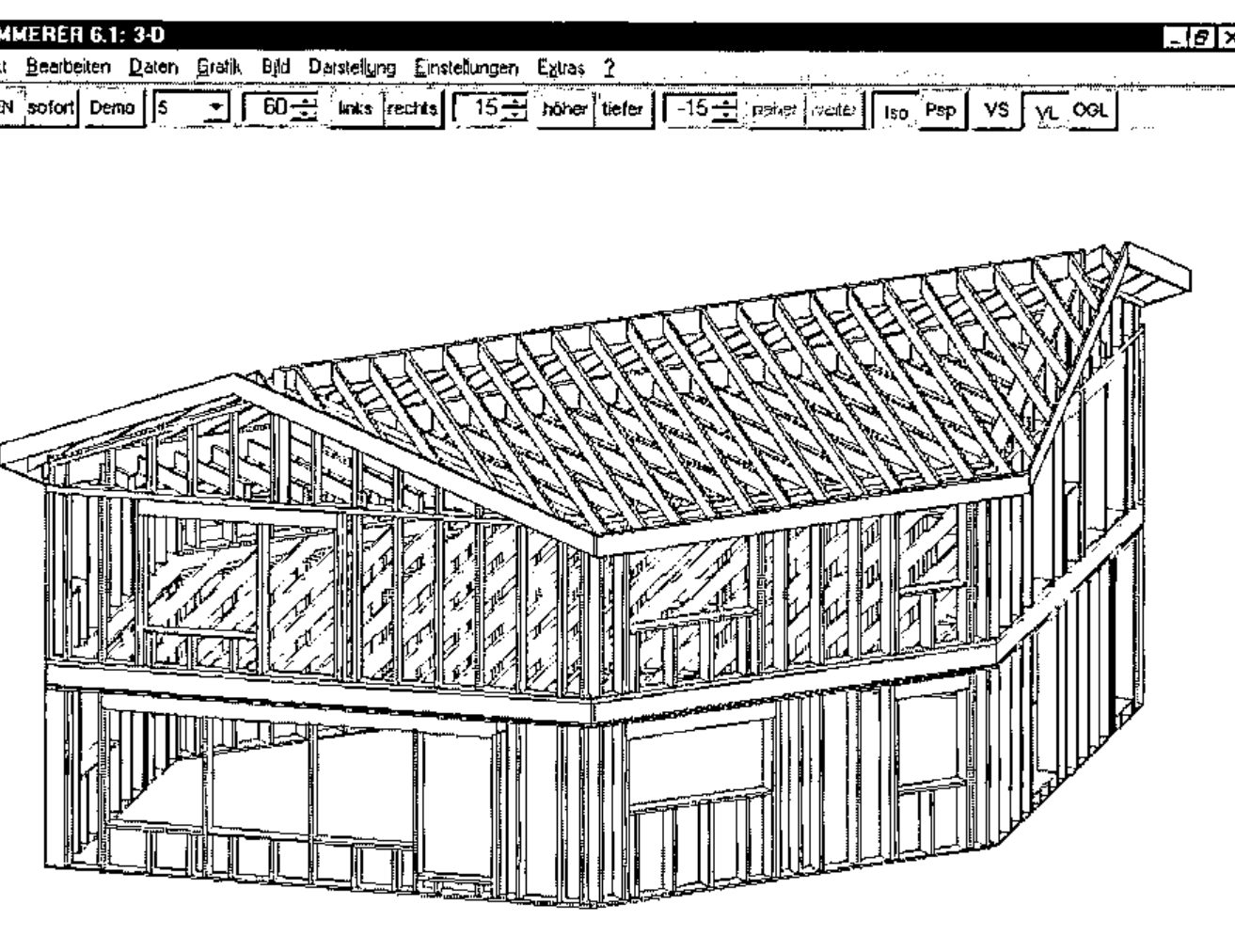

  The overall Contour can be modified and and beams fit into it - Produces 10 different technical plans with all required measurements - 3D-graphics (choice of vector graphics with hidden line detection – ideal for high res printing; or pixel graphics using openGL – ideal for visualisation

• Allows interfacing with other systems, including various brands of CNC-Sawing Machinery (via DXF and custom formats)

Billing¶

• provides lists needed for billing: lumber cut and other material
• standard price tables and invoice writing (using RichEdit with RTF-templates)

ZIMMERER has a live-update feature included, to download a patch-workspace.
