DDE in APL+Win

Transcribed from the printed issue; not yet reviewed. Read it in the PDF of the issue, page 111

Introduction¶

Dynamic Data Exchange (DDE) is a means of exchanging data between two concurrently running Windows applications which support DDE. DDE is ‘old’ technology, has inherent limitations and is no longer recommended for distributed applications. However, it can be very useful to the system developer for one off data acquisition.

This article demonstrates DDE conversations between APL+Win version 3.0 and Microsoft Access version 2.0. The discussion of DDE properties and Windows Application Programming Interface (API) should be relevant to other APL interpreters.

Starting Applications¶

DDE requires that the two applications sharing data are running concurrently. In practice, this would mean that the server application (Access) should be started, the database to be shared be open and then for APL+Win to establish communication.

It is preferable that APL+Win itself starts Access prior to establishing a conversation, thereby ensuring that Access is ready. Then, only the database name and location need be known.

For this article, it is NWIND.MDB which is a sample database packaged with Access, found at c:\msoffice\access\sampapps on my computer.

For APL+Win to start Access, it must

• identify the exe which runs Access
• call the exe file and open NWIND.MDB

Identifying exe¶

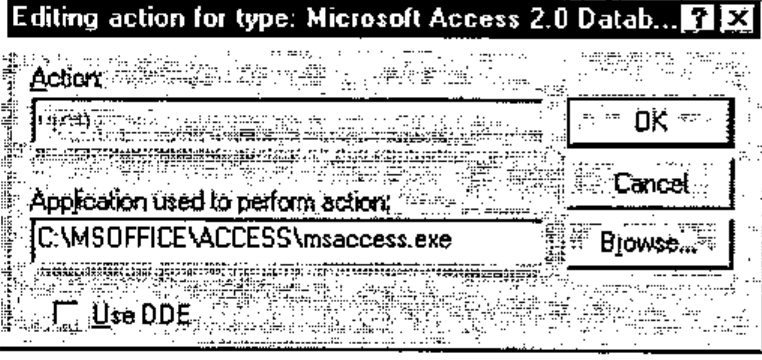

If MSAccess is correctly installed (confirmed by dialogue below: within Explorer, click View, click Options, {locate Microsoft Access 2.0 Database}, click Edit, Click Edit...),

the Find Executable API call can be used to locate the exe file.

HINSTANCE FindExecutable(lpszFile, lpszDir, lpszResult)

LPCSTR lpszFile;   /* address of string for filename*/
LPCSTR lpszDir;    /* address of string for default directory*/
LPSTR lpszResult;  /* address of string for executable file on return*/

The FindExecutable function finds and retrieves the executable filename
that is associated with a specified filename.

Parameter          Description

lpszFile           Points to a null-terminated string specifying a
                   filename. This can be a document or executable file.
lpszDir            Points to a null-terminated string specifying the drive
                   letter and path for the default directory.
lpszResult         Points to a buffer that receives the name of an
                   executable file when the function returns. This null-
                   terminated string specifies the application that is
                   started when the Open command is chosen from the File
                   menu in File Manager.

Returns            The return value is greater than 32 if the function is
                   successful. If the return value is less than or equal to
                   32, it specifies an error code.

In APL+Win this is :

    ∇ Z←Locate_Exe R
[1]   ⍝ Return name of EXE for file R
[2]   Z←1000⍴⎕tcnul
[3]   Z←⎕wcall 'FindExecutable' R '' Z
[4]   :if 32<⎕io⊃Z
[5]       Z←(⎕io+1)⊃Z
[6]       Z←(¯4↓(4/1),∧\~(Z ⎕SS '.exe')∨Z ⎕ss '.EXE')/Z
[7]   :else
[8]       Z←''
[9]       'Failed to locate exe for file ',R
[10]      ÷0
[11]      ⍝ Normally you'd use MessageBox API call for error trapping!
[12]  :endif
    ∇

Locate_Exe 'C:\MSOFFICE\ACCESS\SAMPAPPS\NWIND.MDB'

returns

C:\MSOFFICE\ACCESS\msaccess.exe

Starting exe with Source File¶

Another Windows API, WinExec does this.

UINT WinExec(lpszCmdLine, fuCmdShow)

LPCSTR lpszCmdLine;  /* address of command line*/
UINT fuCmdShow;      /* window state of new app.*/

The WinExec function runs the specified application.

Parameter            Description

lpszCmdLine          Points to a null-terminated Windows character string
                     that contains the command line (filename plus optional
                     parameters) for the application to be run. If the
                     string does not contain a path, Windows searches the
                     directories in this order:
Returns              The return value identifies the instance of the loaded
                     module, if the function is successful. Otherwise, the
                     return value is an error value less than 32.

In APL+Win, this is:

    ∇ Z←Start_Exe R
[1]   ⍝ Open file R in a hidden window
[2]   Z←⎕wcall 'WinExec' ((Locate_Exe R),' ',R) 'SW_HIDE'
[3]   :if 32>Z
[4]       'Error Opening ',R
[5]       ÷0
[6]   :endif
    ∇

The shwCmd SW_HIDE can be substituted by SW_SHOWMAXIMIZED if you want to see Access running. Refer to the WINDOWPLACEMENT API call for documentation of other shwCmd options.

Thus,

Start_Exe 'c:\msoffice\access\sampapps\nwind.mdb'

will start Access and open NWIND.MDB.

This approach will enable APL to start any exe application, preferably from a menu. For example,

Start_Exe 'c:\myfile.htm'

will launch the default internet browser (if it exists) and open the file c:\myfile.htm.

Getting Table Categories from NWIND.MDB¶

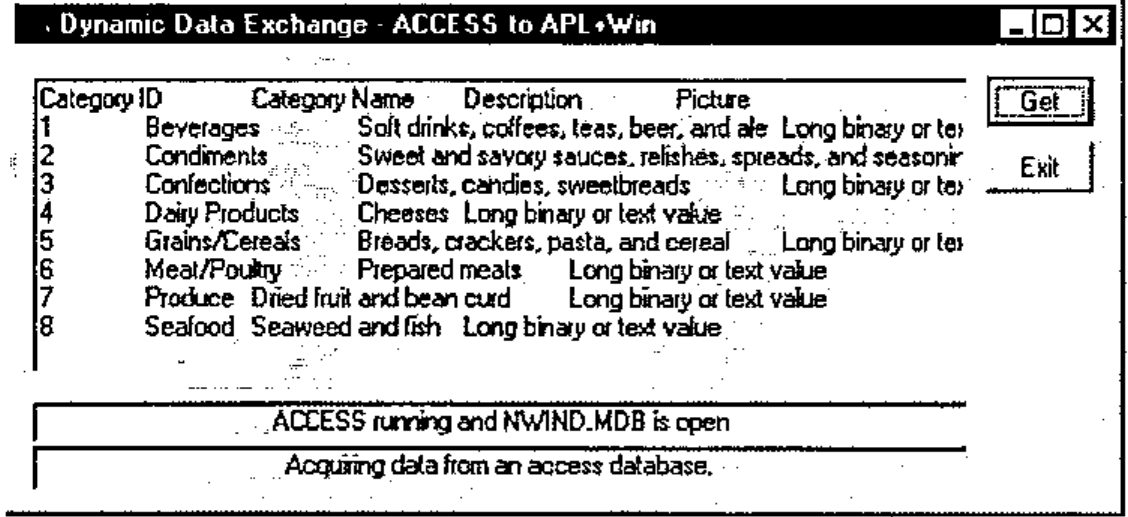

Run the function Access_DDE and click the Get button for the following to appear:

The function Access_DDE is :

    ∇ Access_DDE;⎕wself
[1]
[2]   'Access' ⎕wi 'Delete'
[3]
[4]   ⎕wself←'Access' ⎕wi 'New' 'Form' 'Close'
[5]       ⎕wi 'caption' 'Dynamic Data Exchange - Access to APL+Win'
[6]       ⎕wi 'extent' 13.125 62.25
[7]       ⎕wi 'where' 9.5 11.375
[8]
[9]   ⎕wself←'Access.bn1' ⎕wi 'New' 'Button'
[10]      ⎕wi 'caption' 'Get'
[11]      ⎕wi 'where' 0.875 55 1.375 6
[12]      ⎕wi 'onClick' '''Access.ed1'' ⎕wi ''DdeRequest'''
[13]
[14]  ⎕wself←'Access.l1' ⎕wi 'New' 'Label'
[15]      ⎕wi 'caption' 'Access running and NWIND.MDB is open'
[16]      ⎕wi 'style' 1
[17]      ⎕wi 'edge' 1
[18]      ⎕wi 'where' 10.125 1 1.25 53
[19]
[20]  ⎕wself←'Access.ed1' ⎕wi 'New' 'Edit'
[21]      ⎕wi 'style' 4100
[22]      ⎕wi 'ddeMode' 'cold'
[23]      ⎕wi 'ddeTopic' 'MSACCESS|NWIND;TABLE Categories'
[24]      ⎕wi 'ddeItem' 'All'
[25]      ⎕wi 'where' 0.875 1 8.5 53
[26]      ⎕wi 'onChange' 'APLvar←''Access.ed1'' ⎕wi ''text'''
[27]
[28]  ⎕wself←'Access.bn3' ⎕wi 'New' 'Button'
[29]      ⎕wi 'caption' 'Exit'
[30]      ⎕wi 'where' 2.75 55 1.375 6
[31]      ⎕wi 'onClick' '''Access'' ⎕wi ''Delete'''
[32]
[33]  ⎕wself←'Access.l2' ⎕wi 'New' 'Label'
[34]      ⎕wi 'caption' 'Acquiring data from an access database.'
[35]      ⎕wi 'style' 1
[36]      ⎕wi 'edge' 1
[37]      ⎕wi 'where' 11.375 1 1.375 53
[38]
[39]  'Access' ⎕wi 'Wait'
    ∇

It is assumed that:

• you understand APL+Win and therefore Access_DDE
• you can write Access_DDE for your APL interpreter, if different

However, the DDE properties deserve further explanation.

⎕wi 'ddeMode' 'cold'

The ddeMode property has three possible values:

Access_DDE specifies a cold link, that is, will use NWIND.MDB on a read only basis.

⎕wi 'ddeTopic' 'MSACCESS|NWIND;TABLE Categories'

The ddeTopic property defines the topic of a DDE conversation with another Windows application. It is used on both client (APL+Win) and server (Access) sides of a conversation.

The options (the phrase following NWIND, the database file name) are :

⎕wi 'ddeItem' 'All'

When ddeTOPIC omits a specification including and beyond ; (see below) , the possible values for ddeItem are :

That is, the structure of the data base can be queried. For example,

⎕wi 'ddeTopic' 'MSACCESS|NWIND'

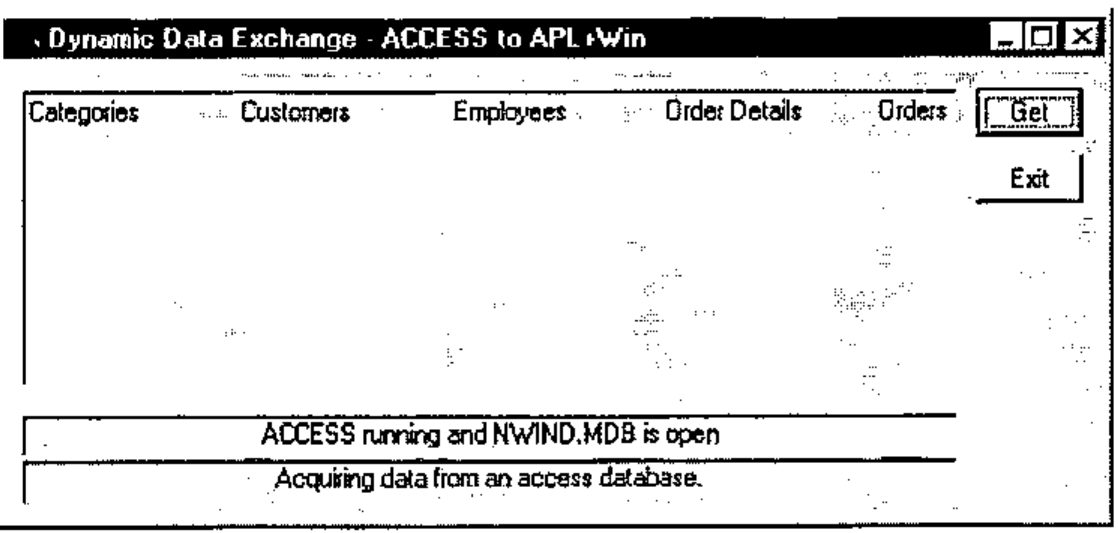

⎕wi 'ddeItem' 'TableList'

will return

Note that Access table names may contain imbedded spaces in their names and therefore they are unsuitable as APL+Win variable names. A good strategy is to turn space into underscore for workspace manipulation of those names.

When ddeTOPIC is not omitted, the possible values for ddeItem are :

An example:

⎕wi 'ddeTopic' 'MSACCESS|NWIND;SQL SELECT Region,Country FROM
Employees WHERE Title="Sales Representative"'
⎕wi 'ddeItem' 'All'

Note, only two fields are being selected, namely Region and Country. Specify * for all fields.

⎕wi 'onChange' 'APLvar←''Access.ed1'' ⎕wi ''text'''

On APL+Win receiving data from Access, the variable APLvar is updated in the workspace.

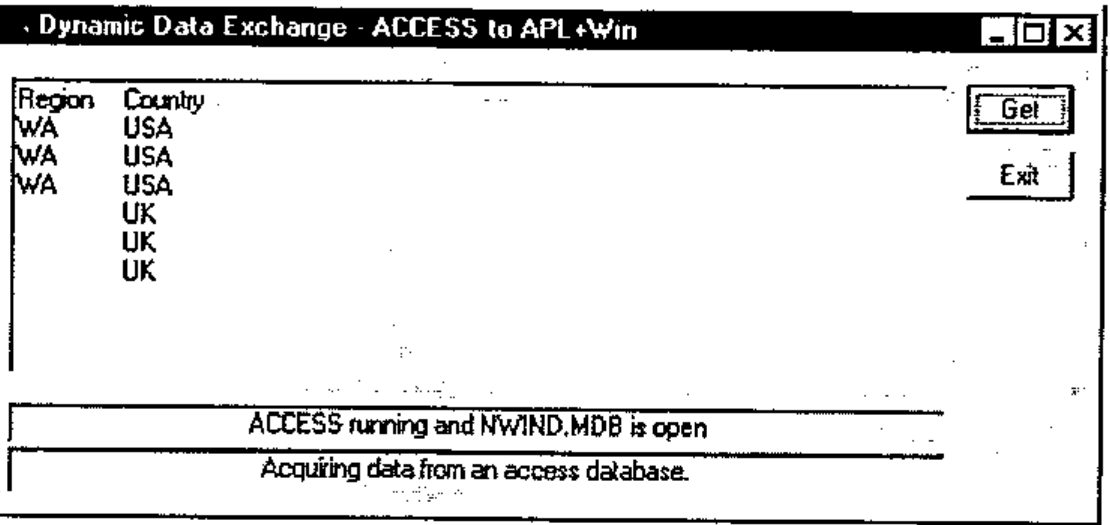

      ⍴APLvar
47
      ]DISPLAY APLvar
┌→─────────────┐
│Region Country│
│WA USA        │
│WA USA        │
│WA USA        │
│ UK           │
│ UK           │
│ UK           │
└──────────────┘

APLvar is a simple text vector, delimited with tabs and newlines.

Inherent Limitations¶

As APLvar comes from an Edit box,

• it is restricted to 64K in length (can be overcome when ddeItem 'NextRow' is used, in most cases)
• it is text

It requires further manipulation in APL. This requires some fluency in nested APL.

First,

APLvar2←(APLvar≠⎕tcnl)⊂APLvar

      ⍴APLvar2
7
      ]display APLvar2
┌→─────────────────────────────────────────────────────────────┐
│┌→─────────────┐ ┌→─────┐ ┌→─────┐ ┌→─────┐ ┌→──┐ ┌→──┐ ┌→──┐ │
││Region Country│ │WA USA│ │WA USA│ │WA USA│ │ UK│ │ UK│ │ UK│ │
│└──────────────┘ └──────┘ └──────┘ └──────┘ └───┘ └───┘ └───┘ │
└∊─────────────────────────────────────────────────────────────┘

Second,

APLvar3← ⊃(⎕tcht≠¨APLvar2)⊂¨APLvar2
      ⍴APLvar3
7 2
      ]display APLvar3
┌→──────────────────┐
↓┌→─────┐ ┌→──────┐ │
││Region│ │Country│ │
│└──────┘ └───────┘ │
│┌→─┐     ┌→──┐     │
││WA│     │USA│     │
│└──┘     └───┘     │
│┌→─┐     ┌→──┐     │
││WA│     │USA│     │
│└──┘     └───┘     │
│┌→─┐     ┌→──┐     │
││WA│     │USA│     │
│└──┘     └───┘     │
│┌→─┐     ┌→┐       │
││UK│     │ │       │
│└──┘     └─┘       │
│┌→─┐     ┌→┐       │
││UK│     │ │       │
│└──┘     └─┘       │
│┌→─┐     ┌→┐       │
││UK│     │ │       │
│└──┘     └─┘       │
└∊──────────────────┘

Thus,

APLvar3[;⎕io] gives the variable Region
 Region WA WA WA UK UK UK
      ≡APLvar3[;⎕io]
2

For record by record indexing,

    ∇ ByRecord R
[1]
[2]   :for i :in 1↓⍳1↑⍴R
[3]       (Region Country)←APLvar3[i;]
[4]       ⍝ 'Your Code For Processing Records Goes Here'
[5]   :endfor
    ∇

The first index is dropped because ddeItem was All: this would not be necessary if ddeItem were specified as Data.

Third, since the original variable APLvar is read as text (there is no other way), the values need to be converted to the appropriate types. APL+Win has ⎕vi and ⎕fi for this purpose.

Conclusion¶

Having received the topic from Access, the link must be severed:

'Access.ed1' ⎕wi 'ddeItem' ''

and you need to close Access.

In this article, Access acts as a server to APL+Win. Another contribution can explore Access as a client to APL?

References:¶

1. Microsoft Windows 3.1 Resource Kit
2. Microsoft Access 2.0 On Line Help
3. APL+Win On Line Help
